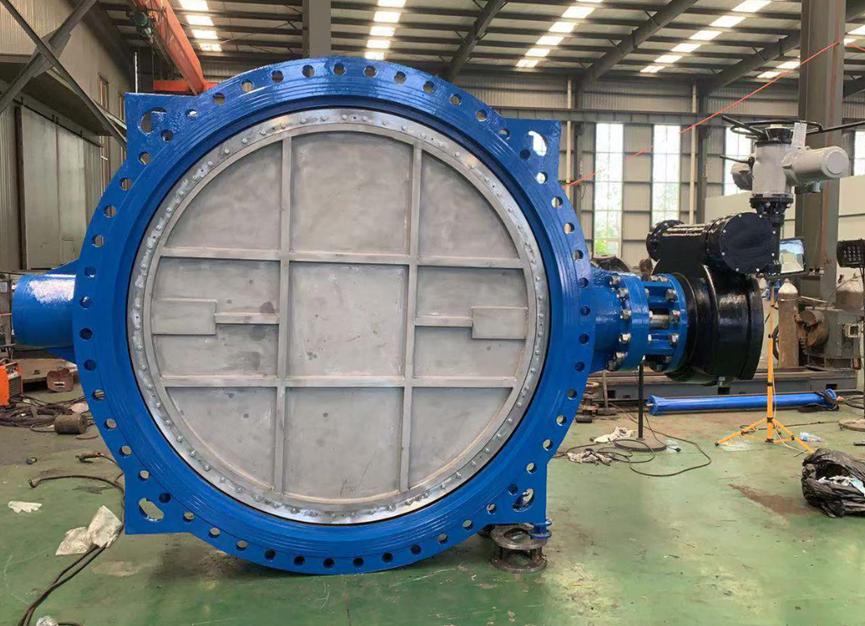

Series No. BFV-1001
Double Eccentric flanged butterfly valves, the axis of the valve stem deviates from the center of the butterfly plate and the center of the body. The effect of double eccentricity enables the butterfly plate to quickly detach from the seat after the valve is opened, which greatly eliminates unnecessary excessive squeezing and scraping between the butterfly plate and the valve seat, reduces the opening resistance, reduces wear and improve Seat life.
Quick Detail
Design standard: API 609. /BS5155
Face to face: EN558 Series 13/14, ISO5752 Series 13/14, AWWAC504
Bi-direction Seal,
Renewable seat Design
Mode of operation: Gearbox.
Test and inspection: API 598. EN1226
Product Range
Available Body Material: Ductile Iron , Carbon steel, Stainless steel, Alloy steel.
Available Body Seat Ring: SS304, SS316, STL, Duplex SS 2205/2507, Bronze
Optional Disc Seat Ring: EPDM, NBR, PTFE, Teflon. Neoprene
Optional End connection: Wafer, Lug, Flanged.
Face to face: EN558 Series 13/14, long type or short type
Normal diameter: 4"~96" (DN100~DN2400).
Pressure range: 150PSI/225PSI (PN10, PN16, PN25).
Available Operation: Gearbox, Electric, pneumatic actuator
Working temperature: -46℃~+200℃.

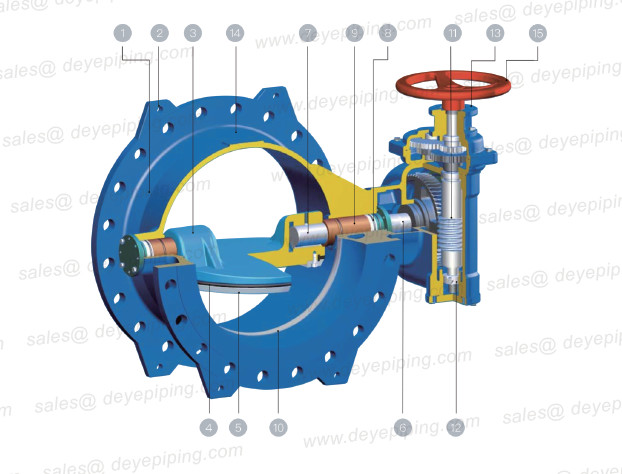

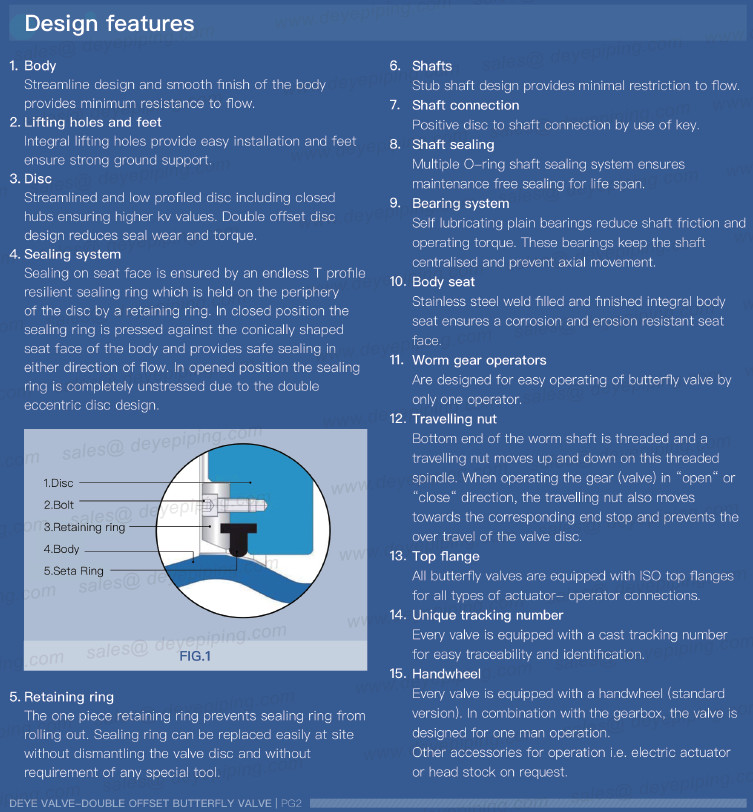

Construction of Double Eccentric Butterfly valves

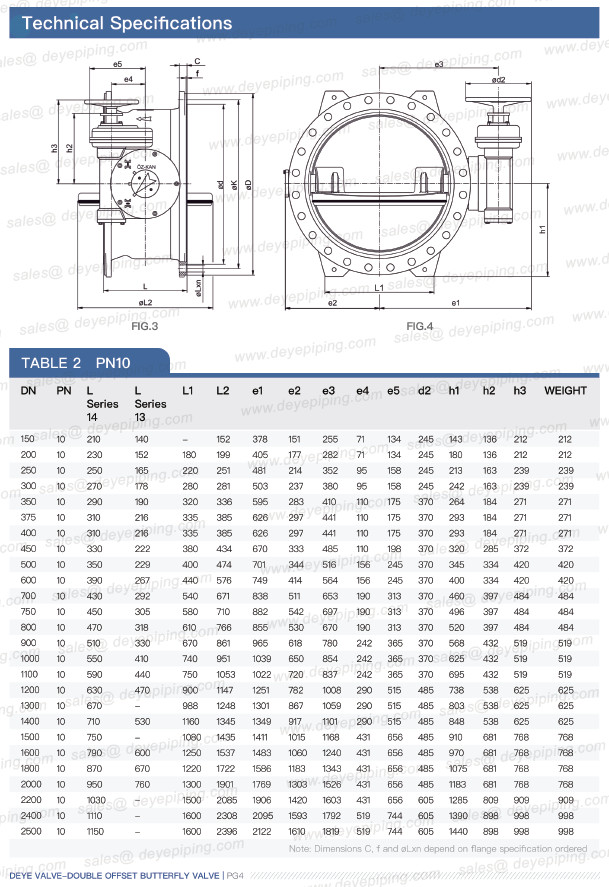

Dimension List of the double offset butterfly valve
Application:
The double eccentric butterfly valve uses an eccentric structure design, which is widely used in the fluid piping system of water supply and drainage, sewage, portable water, drinking water, construction, textile, papermaking, hydropower, metallurgy, energy and other projects for regulation and interception.
